| MACHINE NAME | SB-2V(PLC) CCUT/DOT/SCUT |
| CONTROLLER | PLC |

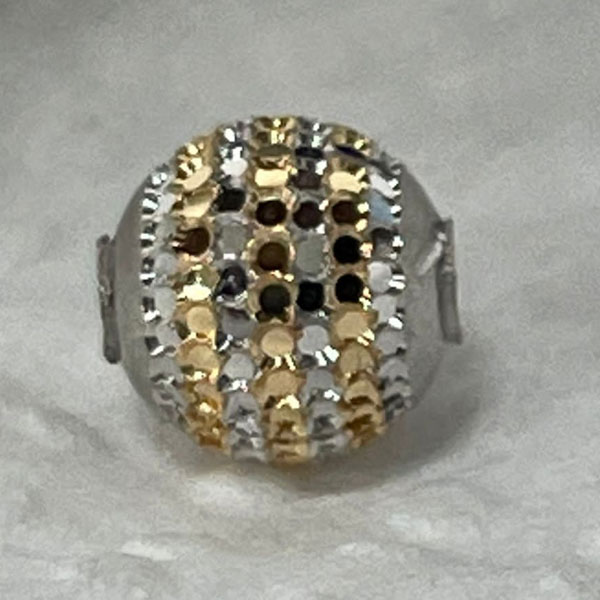

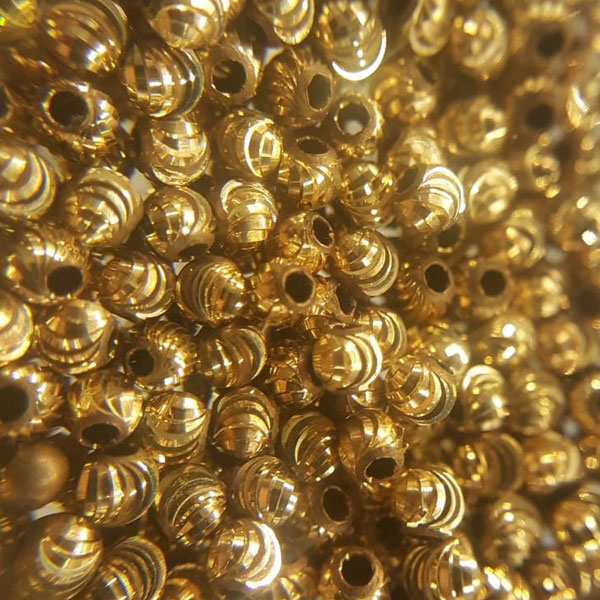

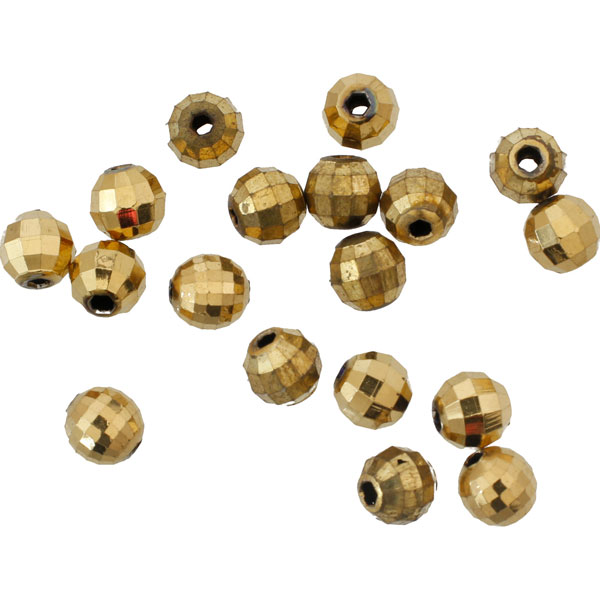

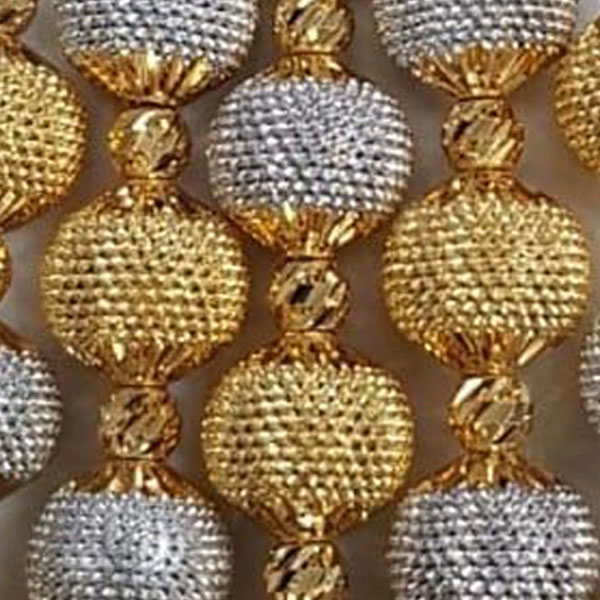

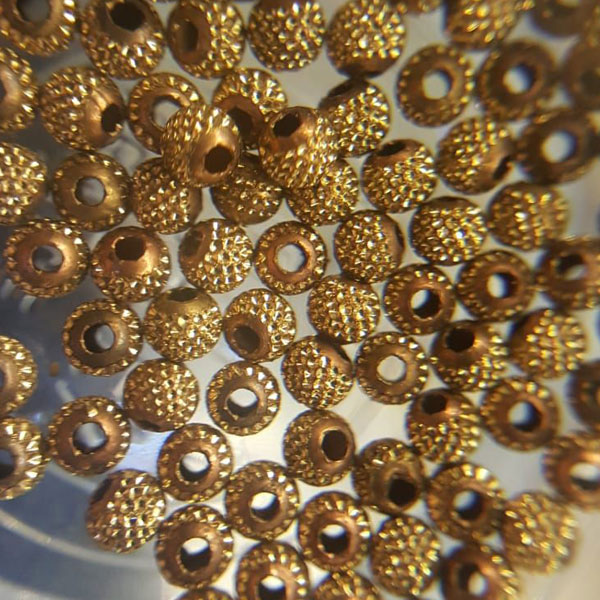

| FUNCTION | VERTICAL CUTTING: C, DOT & S CUT, 2 TO 10MM INCLUDING OVAL |
| SHAPES | ROUND, OVAL |
| MAX CONTROL AXIS | 4 |
| SIM CONTROL AXIS | 3 |
| AXIS | Z,C1,C2,SP |
| SPINDLE | SP |
| SPINDLE SPEED - RPM | 12000RPM |
| BALL SIZE | 2MM TO 12MM |
| HEADS | VERTICAL |
| AIR SUPPLY | 6 BAR |
| POWER SUPPLY | 3 PHASE - 440V |
| INSTALLED POWER | 3KW |
| L X B X H | 41x44x72 |
| MACHINE WEIGHT | 350KG |
All the machine components are machined on precision CNC machine and are hardened and grounded. These components are individually inspected for the accuries. The machine is assemble in a controlled environment.
