The SB-2H Double Head is a CNC-controlled jewellery bead-making machine engineered for accuracy, versatility, and high productivity. Designed for professional applications, it delivers superior surface quality across a wide range of bead shapes and sizes.

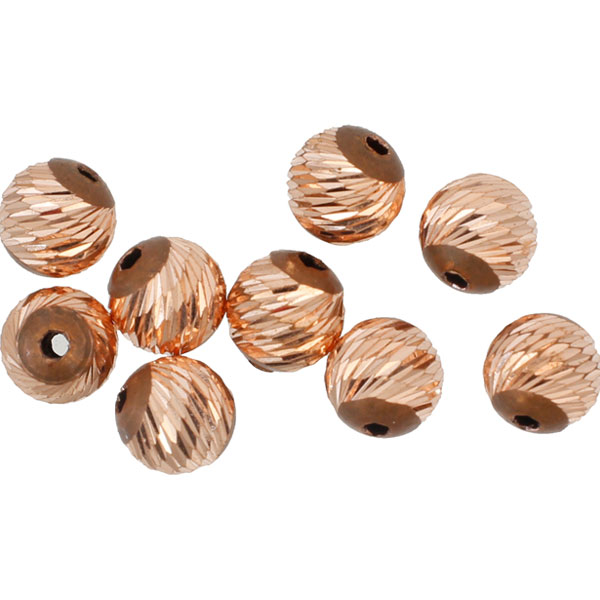

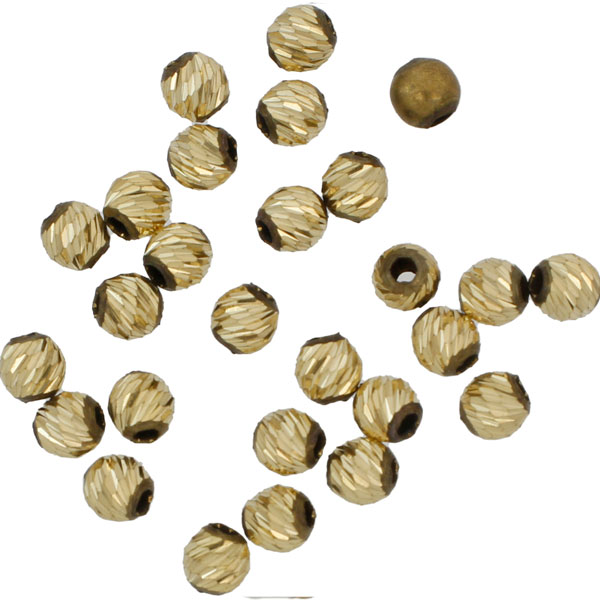

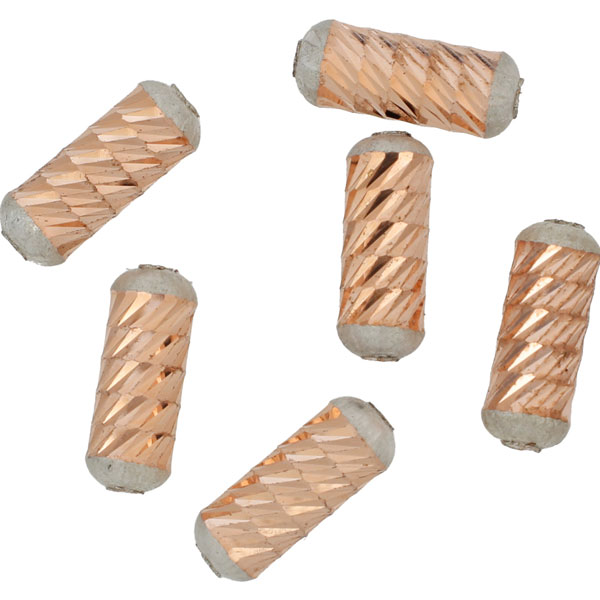

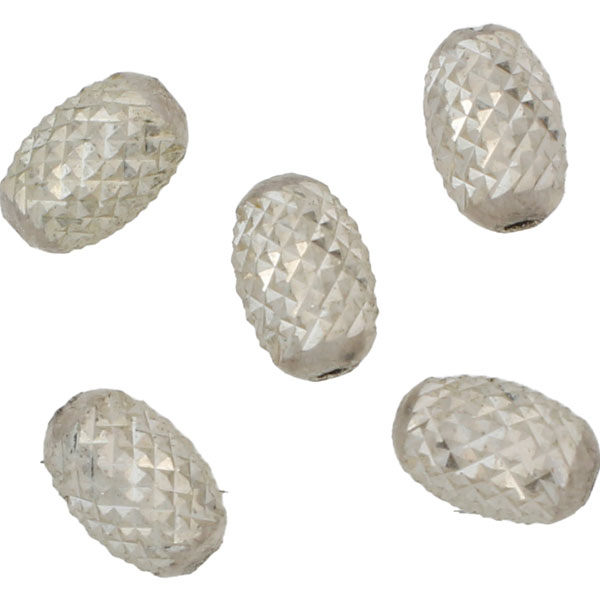

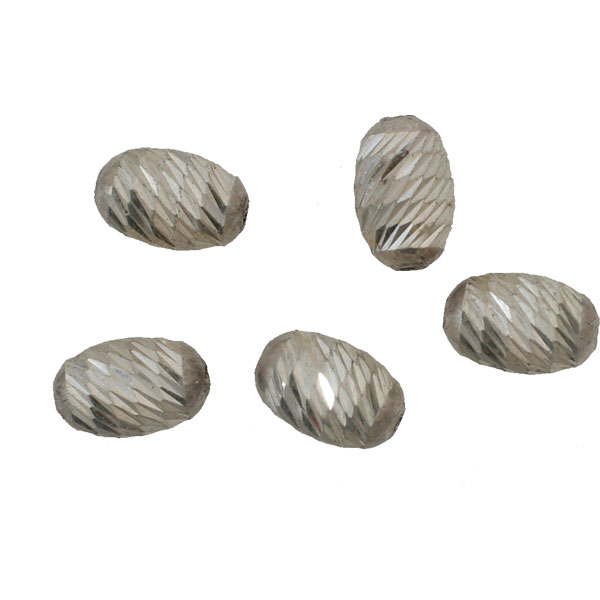

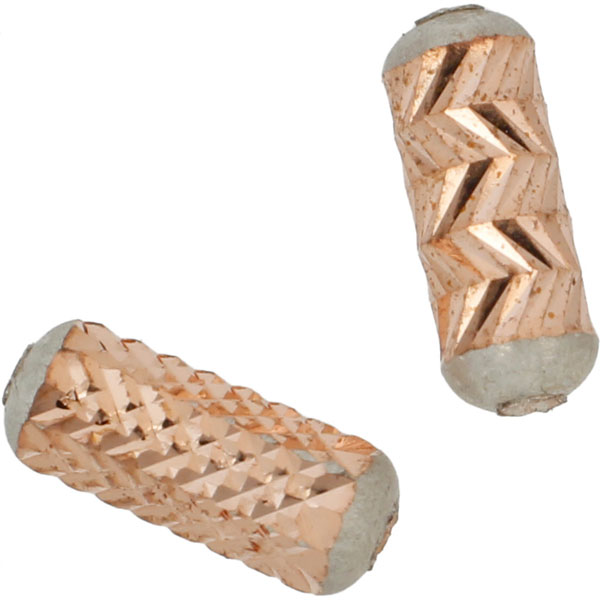

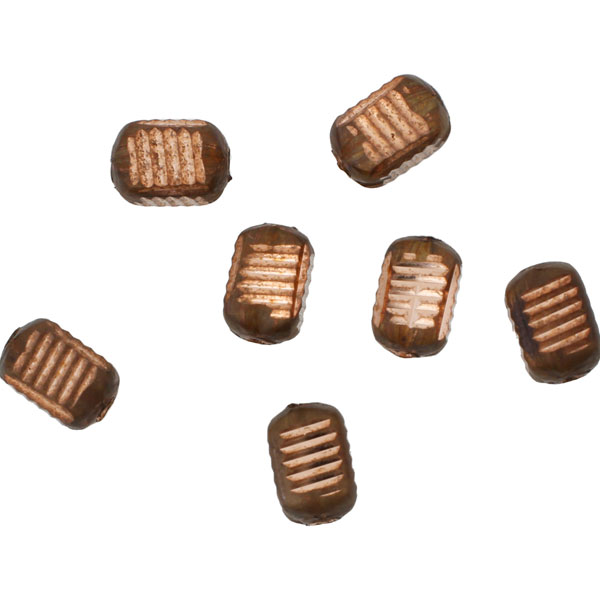

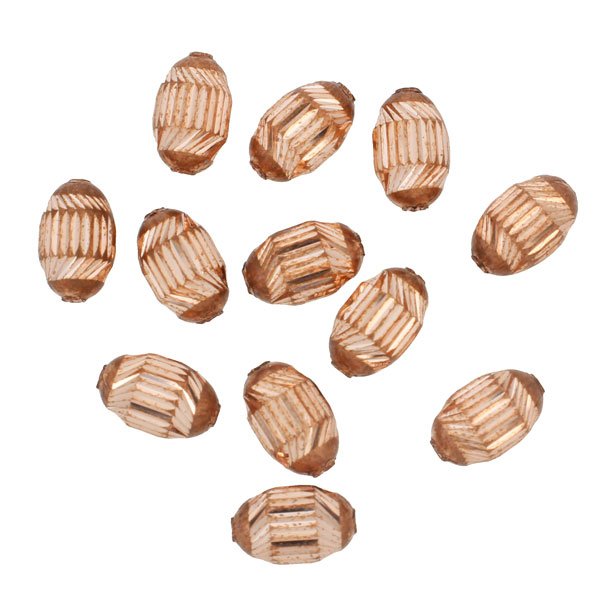

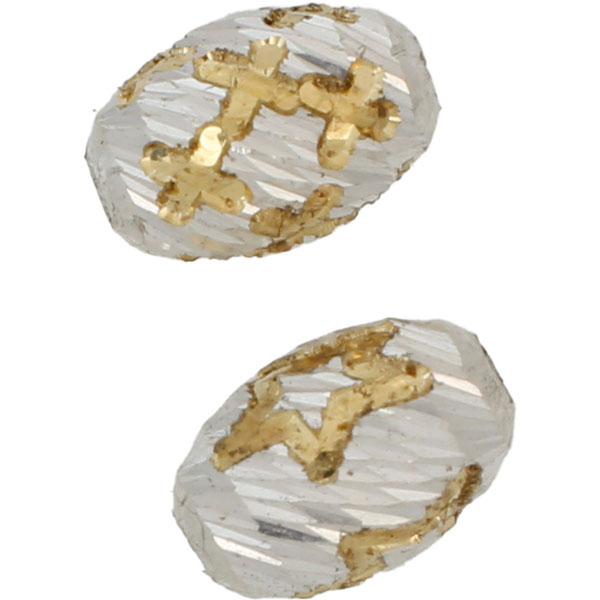

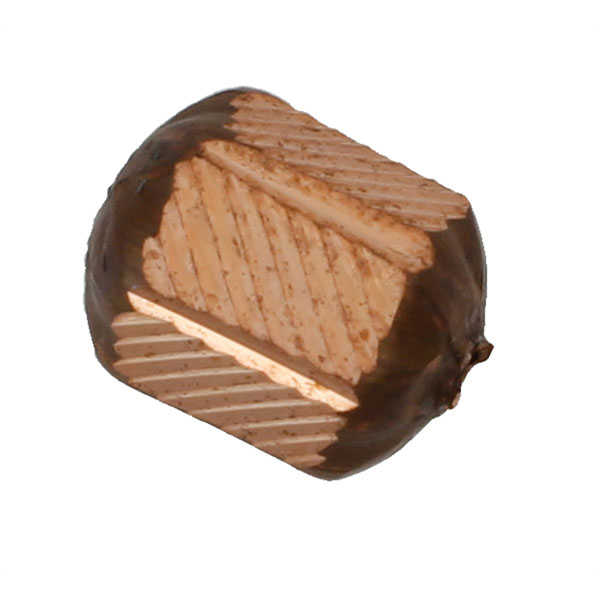

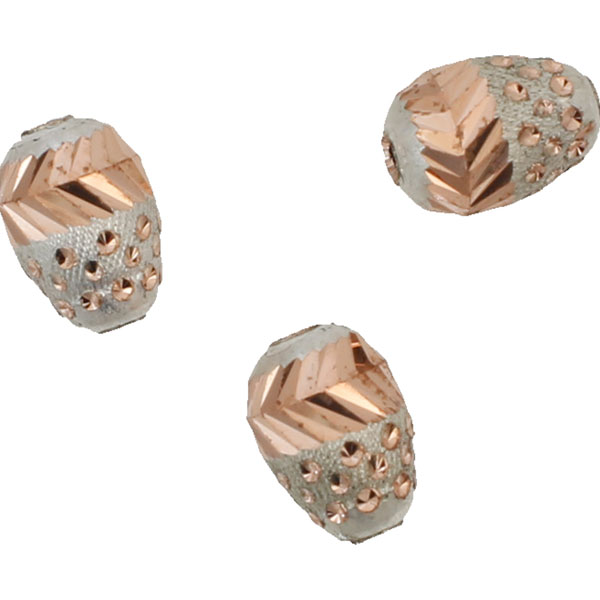

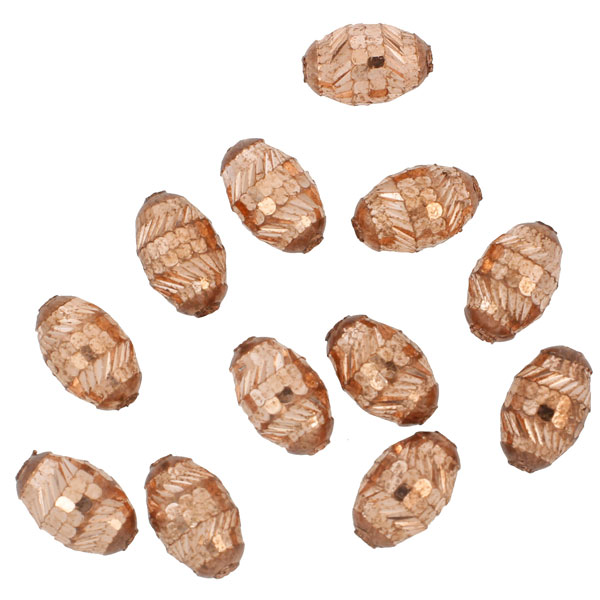

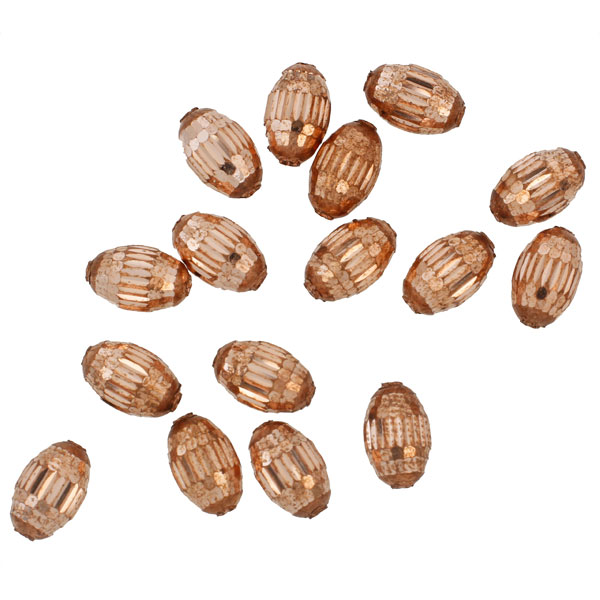

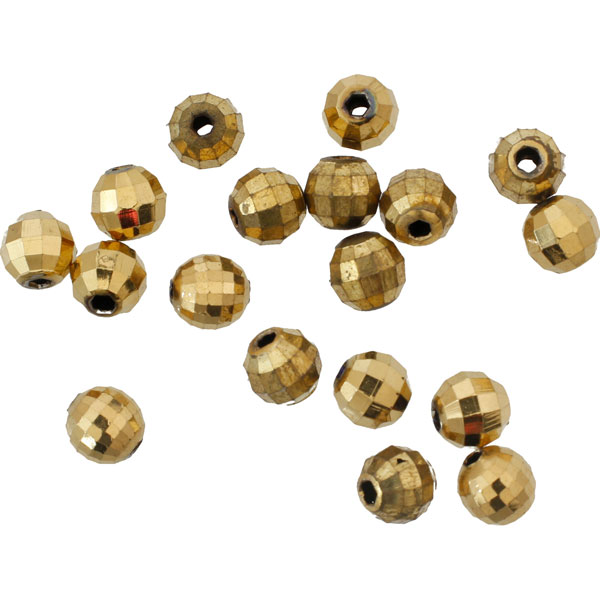

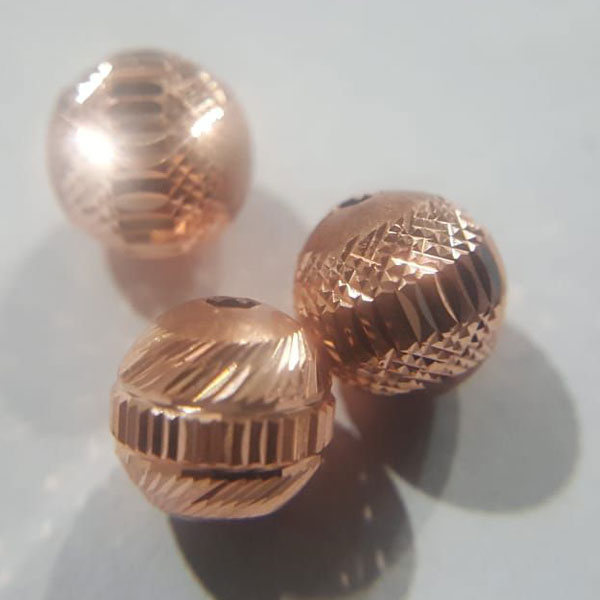

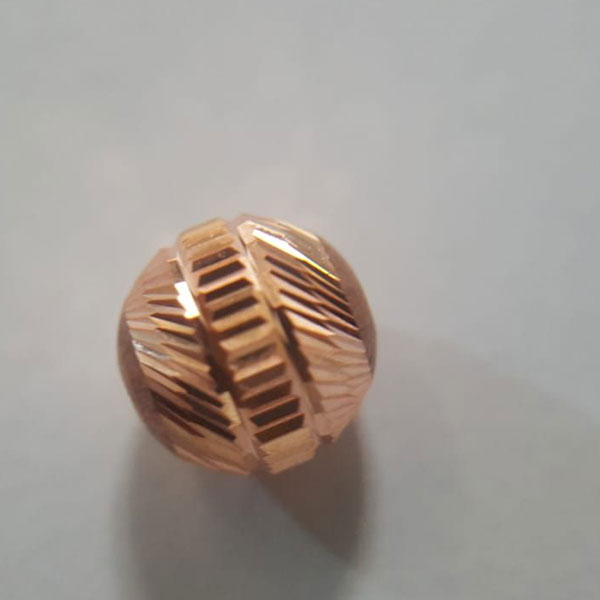

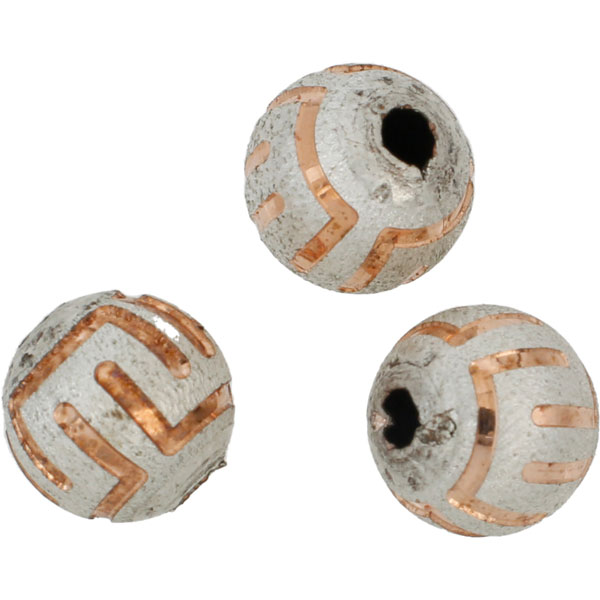

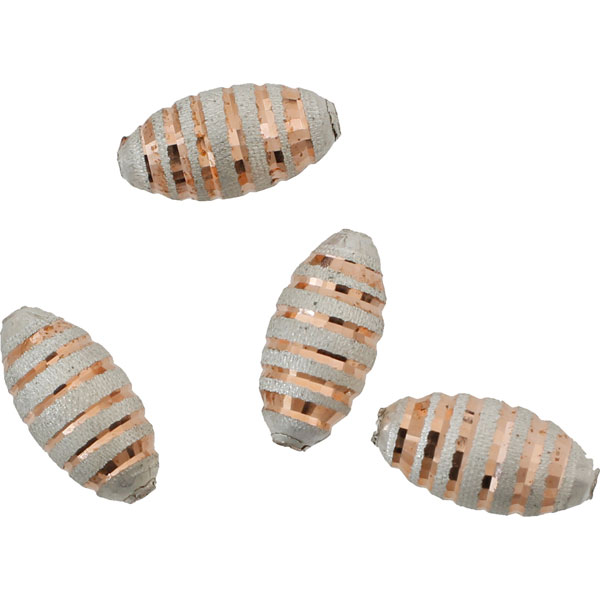

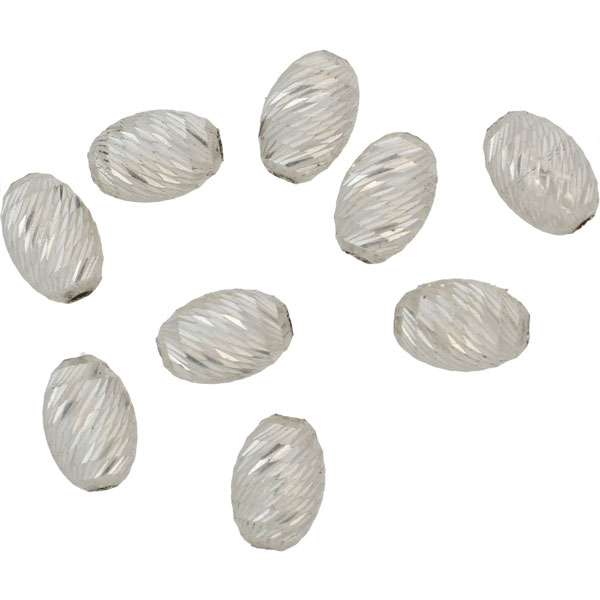

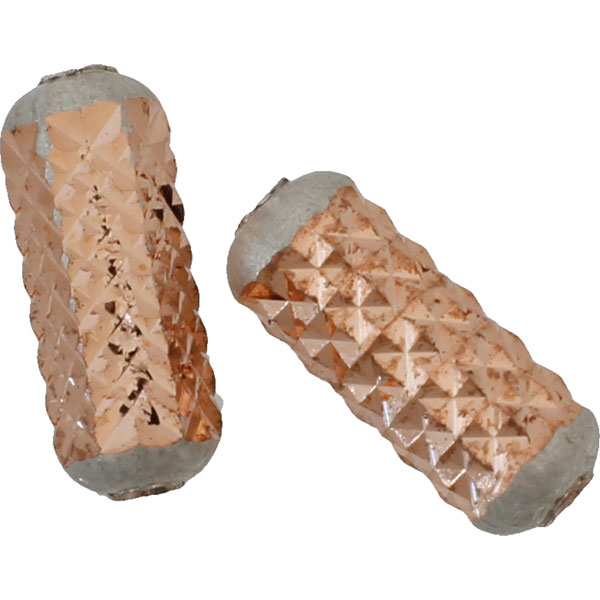

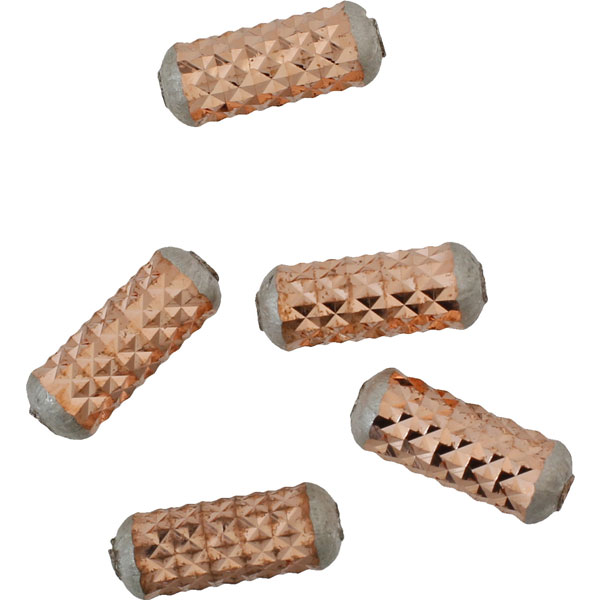

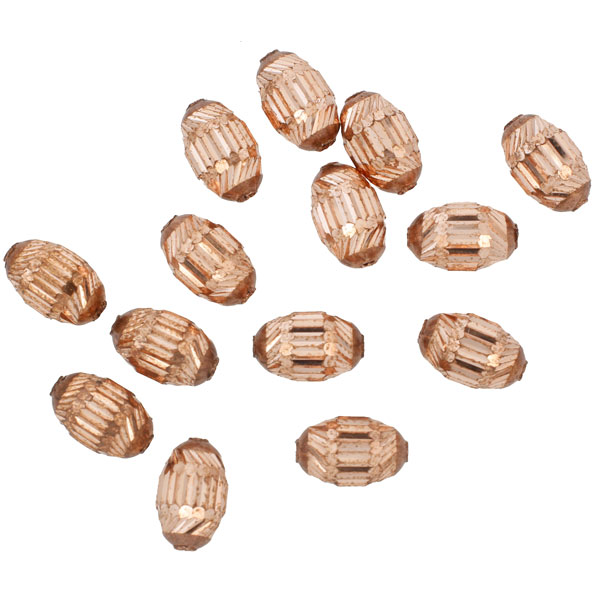

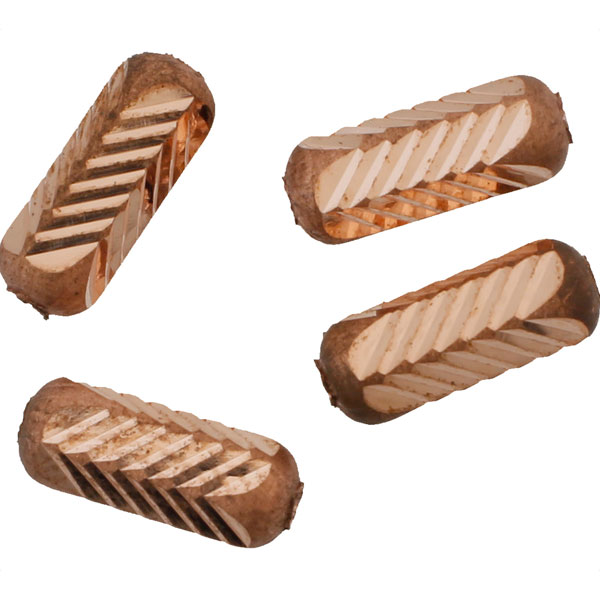

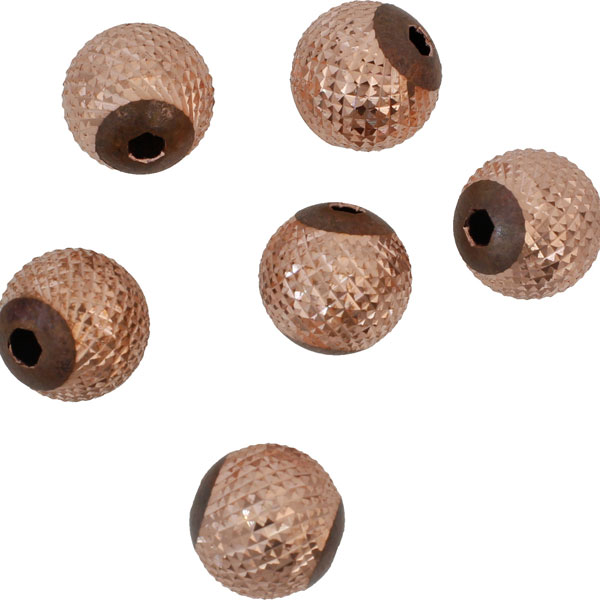

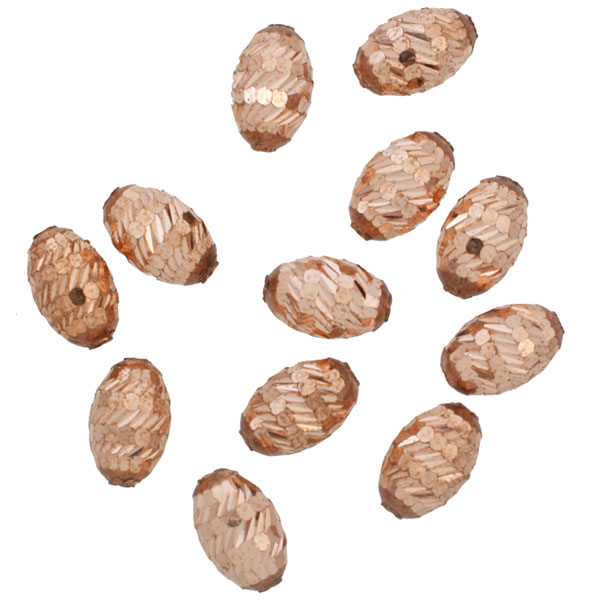

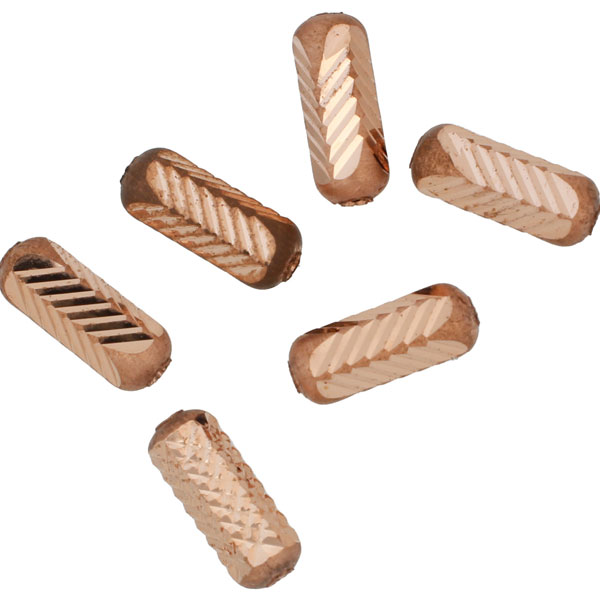

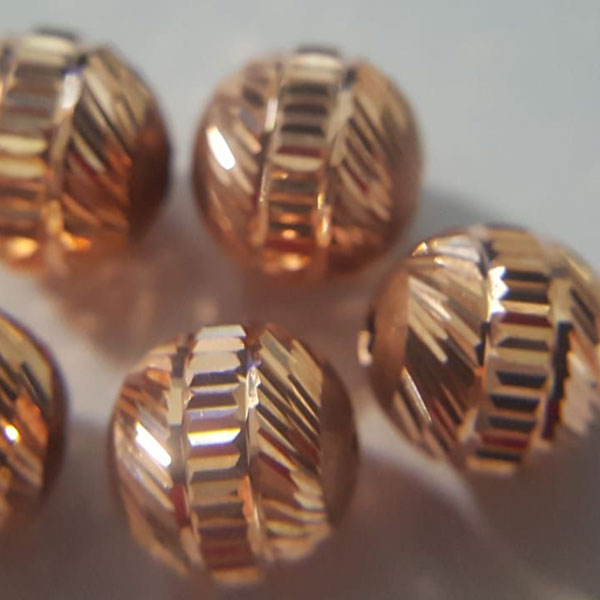

The SB-2H Double Head is a CNC-controlled precision ball-making machine designed for producing a wide variety of jewellery bead shapes, including round, oval, capsule, dumbbell, square, rectangle, and olive. Featuring up to 8 control axes (with 4-axis simultaneous control) and powered by advanced 4-axis designer software, it ensures exceptional accuracy and versatility. Equipped with vertical and horizontal heads, and a high-performance SP-1 spindle running at 12,000 RPM, the SB-2H delivers superior surface quality and intricate detailing across bead sizes from 2 mm to 10 mm. Operating on a 3-phase 440 V power supply with 3.5 kW installed power and 6-bar air support, this machine provides high productivity, stability, and precision for professional jewellery manufacturing applications.
| MACHINE NAME | SB-2H DOUBLE HEAD |
| CONTROLLER | CNC |
| FUNCTION | SB-2PM & SB-2, COMBINATIONS, S CUT SQUARE BEADS OPTIONAL |
| SHAPES | ROUND, OVAL, CAPSULES, DUMBELS, SQUARE, RECTANGLE, OLIVE |
| MAX CONTROL AXIS | 8 |
| SIM CONTROL AXIS | 4 |
| AXIS | X,Z,SP,A,B,C,C1,W, |
| SOFTWARE | 4 AXIS DESIGNER SOFTWARE |
| SPINDLE | SP-1 |
| SPINDLE SPEED – RPM | 12000RPM |
| BALL SIZE | 2MM TO 10MM |
| HEADS | VERTICAL & HORIZONTAL |
| AIR SUPPLY | 6 BAR |
| POWER SUPPLY | 3 PHASE – 440V |
| INSTALLED POWER | 3.5KW |
| L X B X H | 41x44x56 |
| MACHINE WEIGHT | 525KG |
Please feel free to get in touch with our sales team.
